Beyond the Main Frame: Architecture and Implementation of Secure iFrame-to-Native Communication in WebView Mini Apps

Originally published on the Gojek engineering blog.

Cross-origin iframes in WebView mini apps can’t touch the native bridge. Same-origin policy blocks them. Most teams work around this with a relay through the main frame. We didn’t. Routing directly to native instead of through JavaScript meant security validation couldn’t be tampered with, and iframes stopped depending on a main frame that might navigate away or crash.

Every GoTo mini app runs inside a WebView. Some of those mini apps embed third-party iframes — a payment checkout here, a partner widget there. And when those iframes need to call a native API, the browser quietly blocks them. For a long time, we lived with a workaround. Then the workaround became the problem.

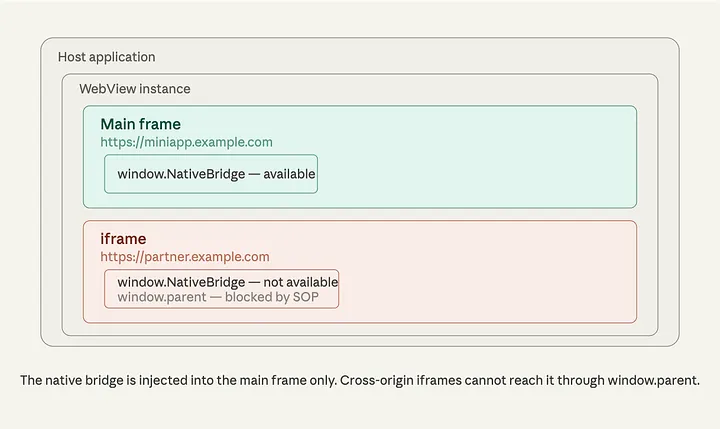

The problem

When a native application injects a JavaScript bridge object into a WebView, that object lives in the main frame’s window. Every iframe has its own isolated execution context, and cross-origin iframes cannot reach across into the main frame’s properties. A mini app embedding a payment checkout from a partner domain cannot simply call parent.NativeBridge.call() — the browser blocks it immediately.

Three factors combine to create this constraint:

1. Each iframe maintains its own JavaScript execution context with an independent window object.
2. Native bridge injection targets only the main frame — WKUserScript on iOS and @JavascriptInterface on Android.
3. Same-origin policy prevents cross-origin frames from accessing each other’s properties altogether.

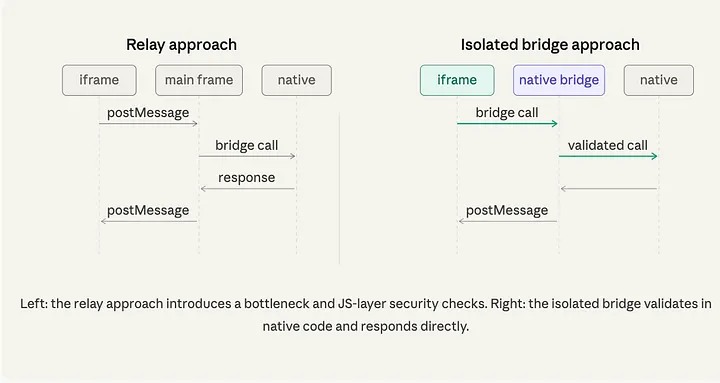

Two approaches considered

We evaluated two architectural paths before settling on our final design.

Main frame relay

The first approach routes everything through the main frame. The iframe sends requests via postMessage, the main frame invokes the native bridge, and the response is relayed back. It is straightforward to implement and requires no changes to the native layer.

The problem is coupling. If the main frame navigates away or crashes, iframe bridge access is lost. With multiple iframes, the main frame becomes a bottleneck. Worse, security validation lives in JavaScript — code that can be tampered with — rather than in native code where it cannot.

Isolated iframe bridge (chosen approach)

The second approach establishes direct communication between the native layer and each iframe. The SDK in the iframe sends requests through the standard bridge channel; native sends responses back via postMessage. Security validation happens in native code. Each iframe gets its own permission set. Partners do not need to implement any custom relay logic.

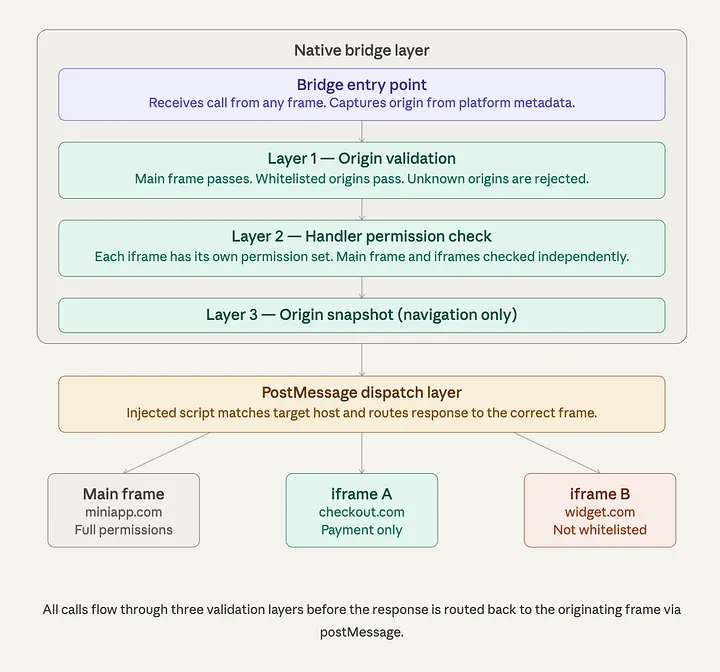

Architecture

The system has three distinct layers inside the native bridge, followed by a postMessage dispatch mechanism and per-frame SDK instances.

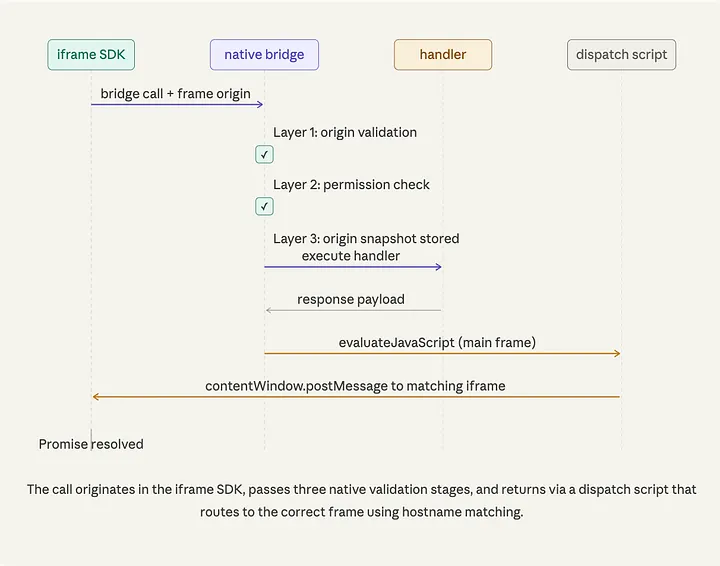

End-to-end call flow

A complete bridge call from an iframe happens in two phases: configuration at launch, and the call itself at runtime.

During configuration, the host app fetches mini app metadata from the backend. This includes the main frame permission list and an array of iframe entries, each specifying an origin, its own permission set, and navigation whitelists. These are transformed into a WebKit configuration and passed to the SDK before any content loads. The bridge does not accept runtime configuration changes.

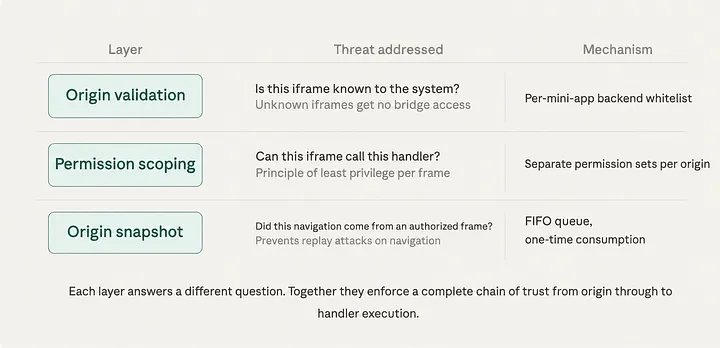

Security model

The three layers each address a distinct threat vector rather than providing redundant checks of the same thing.

The configuration lives on the backend and is fetched at launch time, not embedded in client code. The bridge does not accept runtime configuration changes. The permission and whitelist setup is fixed for the lifetime of the session.

Layer	Threat addressed	Mechanism
Origin validation	Is this iframe known? Unknown iframes get no bridge access	Per-mini-app backend whitelist
Permission scoping	Can this iframe call this handler? Least privilege per frame	Separate permission sets per origin
Origin snapshot	Did this navigation come from an authorized frame? Prevents replay on navigation	FIFO queue, one-time consumption

Platform differences

The architectural pattern is identical across Android and iOS. Implementation details differ because the platforms expose different APIs for frame context.

Android uses WebViewCompat.addWebMessageListener() from the AndroidX WebKit library, which provides sourceOrigin and isMainFrame in the callback. The legacy @JavascriptInterface is retained for backward compatibility but does not carry origin information, so the JS SDK uses two separate call paths depending on whether postMessage mode is active.

iOS uses WKScriptMessage, which inherently provides WKFrameInfo with the request URL. No API migration was needed on iOS. The same bridge path handles both main frame and iframe calls, and the frame info is available directly in the delegate method.

Engineering challenges

Thread-safe frame context correlation

Bridge calls span multiple threads. Incoming messages arrive on the WebView’s callback thread, consent checks may involve background threads, and handler execution happens on the main thread. We use a FIFO queue with atomic operations: a snapshot is stored at bridge entry and consumed exactly once when the handler executes. This guarantees sequential calls are correctly paired with their frame contexts.

Response routing to cross-origin iframes

Native can only run JavaScript via evaluateJavaScript in the main frame context. We inject a small dispatch script that runs in the main frame, iterates direct child iframes, matches the target hostname against each iframe’s src attribute, and calls contentWindow.postMessage() on the matching frame. We traverse only depth-1 iframes, as nested iframes inherit their parent’s configuration.

Concurrent access to event-based handlers

Some handlers — compass, accelerometer, gyroscope — continuously stream data and cannot support concurrent consumers. We enforce a single-session policy: when a handler already has an active session, subsequent registration attempts receive an error. The SDK propagates this to the caller. This keeps resource management simple and predictable.

Backward compatibility

Existing mini apps use a direct callback mechanism where native calls a global window.gpCoreCallback function. Changing this to postMessage would break all existing implementations. The bridge SDK maintains both paths simultaneously. Legacy callbacks continue to work for main frame calls; the postMessage path handles iframe calls. A configuration flag enables postMessage mode automatically when iframe definitions are present. Mini apps without iframes see no behavior change at all.

Decision summary

Decision	Rationale	Alternative rejected
Direct iframe bridge	No coupling between frames; security validation in native code where it cannot be bypassed	Main frame relay — coupled, unscalable, security logic lives in JS
PostMessage for response delivery	Only viable mechanism for cross-origin frame communication	evaluateJavaScript — cannot target cross-origin frames
FIFO queue for origin tracking	Guarantees sequential ordering; one-time consumption prevents replay	Call ID mapping — adds protocol complexity with no additional security benefit
Depth-1 iframe traversal	Covers the common case; nested iframes inherit their parent’s configuration	Full tree traversal — performance cost for an uncommon scenario
Dual callback and postMessage paths	Zero migration burden for existing implementations	Breaking change — requires coordinated cross-team migration

Takeaways

• Frame context must be captured at the earliest possible point in the call flow, before any async operations.
• Permission sets must be independently configurable per frame. Inheriting permissions from the main frame defeats the purpose of scoping.
• Response routing to cross-origin frames requires a dispatch mechanism that runs in the main frame context — there is no shortcut around this.
• The FIFO queue pattern is a simple and effective solution for correlating asynchronous call contexts without adding protocol complexity.
